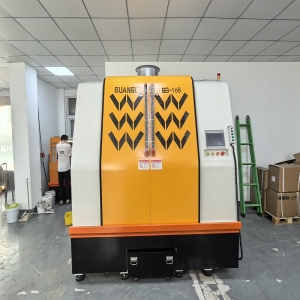

Mirror polishing machine-GG9168

Product Introduction

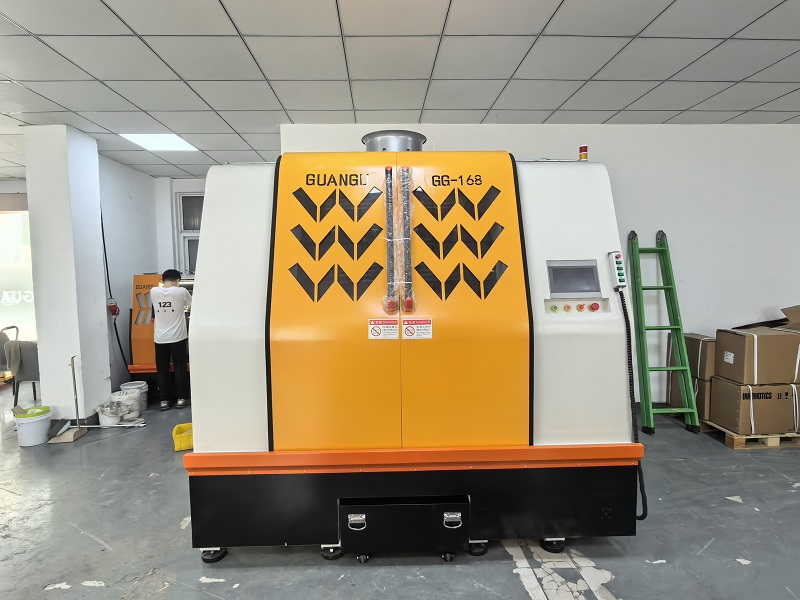

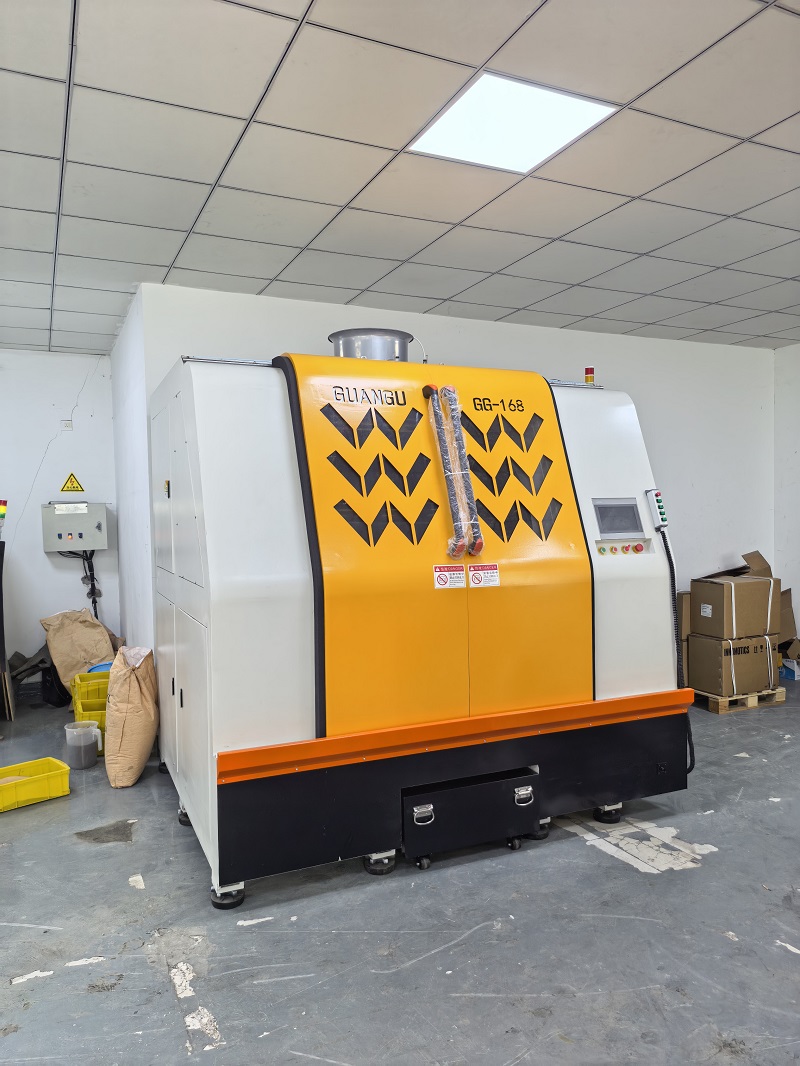

Model GG9168 is a high-capacity wet & dry magnetic polishing machine, designed for mass deburring, chamfering, oxide layer removal and surface finishing of precision metal parts. With a total volume of 400L, it adopts multi-grid separated barrel structure, which can process multiple batches of workpieces at the same time without collision. It supports both wet and dry polishing processes, widely used for large-volume precision part surface treatment.

Working Principle

Place metal workpieces, special plant-based abrasive particles and polishing oil into the drum. Driven by centrifugal force, workpieces and abrasives collide, roll and rub against each other. Micro-cutting removes burrs, scratches and oxide layers automatically, replacing manual polishing to achieve mirror surface.

Advantages

400L large effective capacity, supports wet & dry dual process, flexible for different polishing requirements.

Multi-grid separated barrel design, multiple independent working areas, avoid workpiece collision during processing.

Dual motor drive: main axis 7.5KW + secondary axis 2.2KW, stable magnetic field output, consistent polishing effect.

Optional 4KW dust collector, to collect dust generated during dry polishing, clean working environment.

Gentle polishing action, will not change the original size of precision parts, good uniformity of finished surface.

One machine with multiple grid specifications, can switch to process small, medium and large workpieces.

Machine Features

Power supply: 3 Phase 380V/220V.

Mechanical speed: public transfer revolution 150rpm, rotation revolution 25rpm.

Overall dimension: 235019602250mm, net weight 2900KG, sturdy heavy-duty frame.

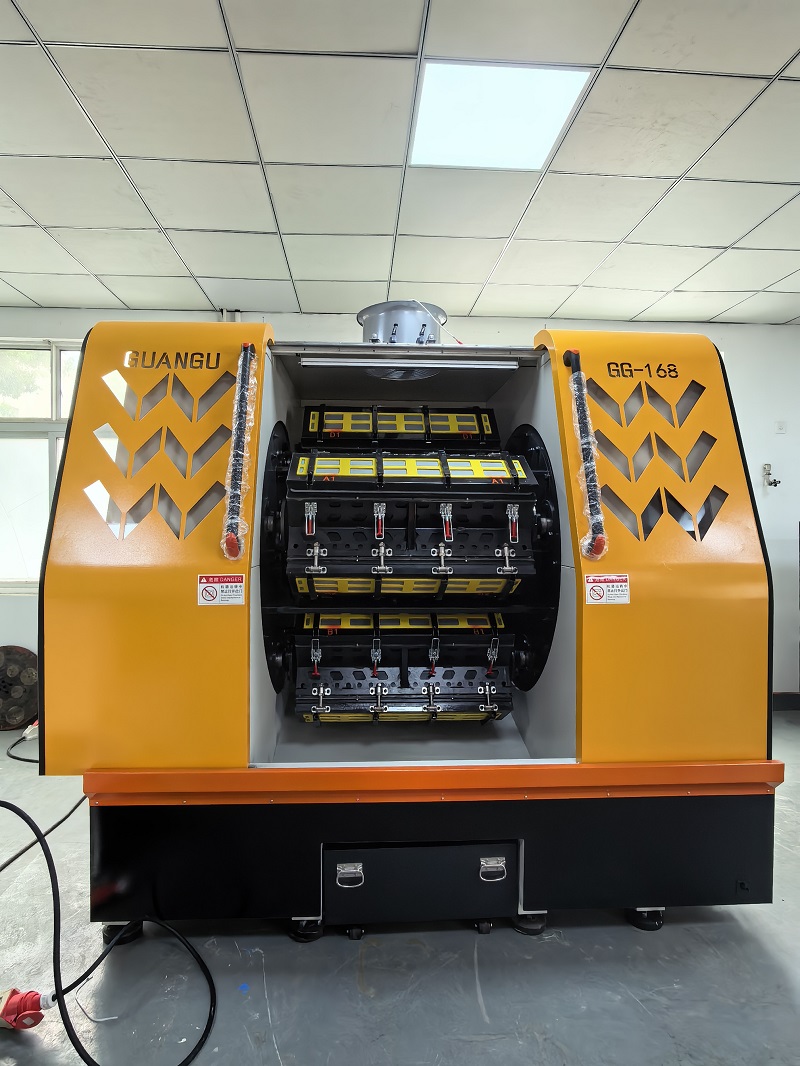

Barrel structure: three-port keg opened design, 3 sides with total 4 buckets and 12 working sides.

Optional grid grooves:

✅12 Grid Groove: 200×200×900mm

✅84 Grid Groove: 200×200×120mm

✅168 Grid Groove: 85×200×120mm

Equipped with optional 4KW dust collector for dry polishing dust collection.

Application Scope

Suitable for deburring, edge rounding, descaling and surface brightening of various precision metal workpieces:

Stamping parts, CNC turning & milling parts, die-casting parts

Hardware fasteners, medical parts, electronic components

Powder metallurgy parts, spring parts, small precision auto accessories Materials: stainless steel, iron, copper, aluminum, zinc alloy, etc.

Equipment Composition

Main machine host (including main axis 7.5KW motor, secondary axis 2.2KW motor, transmission system)

Multi-grid separated barrel assembly (12 sides working buckets, interchangeable grid grooves)

Control system

Optional 4KW dust collector for dry polishing

Magnetic needles, polishing fluid/abrasive media (consumables)

Before & After Polishing

Before polishing: Workpieces have sharp burrs, rough edges, surface oxide layer, black stains, residual processing flash. After polishing: Burrs and sharp corners completely removed, edges smoothly rounded, oxide layer cleaned, surface uniform matte or bright finish. No deformation, dimensional tolerance well maintained.
